PCC030C10G

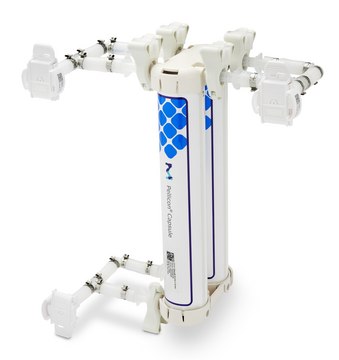

Pellicon® Capsule with Ultracel® Membrane

pore size 30 kDa, C Screen, 1 m2 manifold with AseptiQuik® G connectors

别名:

Pellicon® Capsule with Ultracel® Membrane

登录 查看组织和合同定价。

选择尺寸

变更视图

关于此项目

UNSPSC Code:
41104903
技术服务
需要帮助？我们经验丰富的科学家团队随时乐意为您服务。
让我们为您提供帮助

产品名称

Pellicon®胶囊，带Ultracel®膜,

Quality Level

400

material

EPDM rubber seal, PPO/PS blend housing, TPE seal, cellulose screen (Composite Regenerated), composite regenerated cellulose (CRC) membrane, epoxy adhesive, epoxy device (Potting, BPA-free), polyester screen, polypropylene screen, polyurethane adhesive, polyurethane device (Pottin)

description

C Screen, 1 m2 manifold with AseptiQuik® G connectors

sterility

sterile; γ-irradiated

feature

holdup volume 254 mL (in feed channel), holdup volume 306 mL (in permeate channel)

parameter

max. inlet pressure at 75 psi (5.1 bar) and 4-30 °C, max. transmembrane pressure at 50 psi (3.5 bar) and 4-30 °C, 4-8 L/min-m2 flow rate

technique(s)

ultrafiltration: suitable

capsule L × W × H

19.56 cm (7.7 in.) × 34.37 cm (13.53 in.) × 40.46 cm (15.93 in.)

membrane area

1 m2

screen H

15.9 in. (40.5 cm)

screen L

7.7 in. (19.6 cm) , Length

screen W

13.5 in. (34.4 cm)

impurities

≤5 ppm Meets TOC (in retentate effluent, after a WFI flush of 20 L/m2)

matrix

Ultracel®

pore size

30 kDa

pH range

2-13

fitting

inlet/outlet connection (Feed: AseptiQuik® G Connector), inlet/outlet connection (Permeate: AseptiQuik® G Connector), inlet/outlet connection (Retentate: AseptiQuik® G Connector)

storage temp.

15-25°C

General description

The Pellicon® Capsule with Ultracel Membrane is the first of its kind -- a true single-use TFF device that comes ready to process in minutes. Self-contained, it employs an easy-to-use, holderless format and is supplied gamma sterilized with preservative-free reverse osmosis water. This new addition to the Pellicon® family shares the same unbeatable performance of Pellicon® cassettes featuring C Screen, 1 m² manifold with AseptiQuik® G connectors. This device is linearly scalable, making it easy to transition between both formats.

Pellicon® Capsules are ideal for the filtration of solutions that require single-use capabilities, including:

-Rapid batch turnaround for higher plant productivity
-Lower risks of product cross-contamination
-Self-contained device for increased operator safety
-Process flexibility for multi-product manufacturing facilities
-Optimum use of time and resources from minimal device preparation

Membrane

Pellicon® Capsules with Ultracel membrane are designed for excellent product retention, recovery, and high yields. Ultracel void-free composite membranes combine ultra-low protein binding, low fouling, and organic solvent resistance with superb mechanical strength.

Application

Concentration, Diafiltration, Buffer exchange, Protein purification

Features and Benefits

  • Plug ′n play, holderless design - easy to install, safe to remove
  • Gamma Sterilized and preseravtive-free - ready to process in minutes
  • True single-use, self-contained capusle - fast, safe, and flexible batch turnaround
  • Proven Ultracel® membrane and C screen - high recovery, superior mass transfer, solvent resistance
  • Pellicon® TFF proven performance - true linear scalability within Pellicon® TFF families

Packaging

A foam pouch is inserted over the end caps on both ends of the capsule which is then double-bagged and vacuum sealed. The double-bagged capsule is then placed on a tray and individually boxed.

Other Notes

Screen Type: Type C screen (coarse screen)
The Emprove® Program complements the product portfolio through

  • Comprehensive documentation to support qualification, risk assessment and process optimization needs.
  • Consolidation of product specific testing, quality and regulatory information to simplify compliance requirements.
  • Convenient 24/7 access to up-to-date product information.

Legal Information

AseptiQuik is a registered trademark of Colder Products Company
Emprove is a registered trademark of Merck KGaA, Darmstadt, Germany
Pellicon is a registered trademark of Merck KGaA, Darmstadt, Germany
ULTRACEL is a registered trademark of Merck KGaA, Darmstadt, Germany
