678740

Sigma-Aldrich

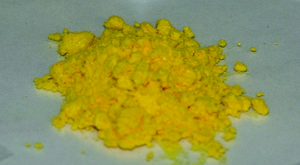

Bis(di-tert-butyl(4-dimethylaminophenyl)phosphine)dichloropalladium(II)

Sign Into View Organizational & Contract Pricing
All Photos(5)
Synonym(s):
(A-taPhos)2PdCl2, Pd(amphos)Cl2
Empirical Formula (Hill Notation):
C32H56Cl2N2P2Pd
CAS Number:
887919-35-9
Molecular Weight:
708.07
MDL number:
MFCD09265123
PubChem Substance ID:
24885453
NACRES:
NA.22

form

solid

reaction suitability

core: palladium
reaction type: Buchwald-Hartwig Cross Coupling Reaction
reaction type: Heck Reaction
reaction type: Hiyama Coupling
reaction type: Negishi Coupling
reaction type: Sonogashira Coupling
reaction type: Stille Coupling
reaction type: Suzuki-Miyaura Coupling
reagent type: catalyst
reaction type: Cross Couplings

functional group

phosphine

SMILES string

Cl[Pd]Cl.CN(c1ccc(P(C(C)(C)C)C(C)(C)C)cc1)C.CN(c2ccc(P(C(C)(C)C)C(C)(C)C)cc2)C

InChI

1S/2C16H28NP.2ClH.Pd/c2*1-15(2,3)18(16(4,5)6)14-11-9-13(10-12-14)17(7)8;;;/h2*9-12H,1-8H3;2*1H;/q;;;;+2/p-2

InChI key

DWOZNANUEDYIOF-UHFFFAOYSA-L

Related Categories

General description

Bis(di-tert-butyl(4-dimethylaminophenyl)phosphine) dichloropalladium(II) is an organic compound with chemical formula C32H56Cl2N2P2Pd. It is commonly used as a catalyst in the organic synthesis.

For small scale and high throughput uses, product is also available as ChemBeads (927791)

Application

Application Guide for Palladium Catalyzed Cross-Coupling Reactions
Bis(di-tert-butyl(4-dimethylaminophenyl)phosphine)dichloropalladium(II) is used as a catalyst:

  • In the enantioselective construction of indole-fused bicyclo[3.2.1]-octanes via an aminopalladition-triggered Heck-type reaction.
  • In the synthesis of phenanthridine derivatives from ortho bromo N-tosylhydrazones and 2-aminophenylboronic ester via Suzuki cross-coupling reaction followed by intramolecular condensation reaction.
  • In the synthesis of indenones by Pd-catalyzed annulation of an ortho-halobenzyl alcohol with internal alkynes.

Pictograms

Exclamation mark
GHS07

Signal Word

Warning

Hazard Statements

H315 - H319 - H335

Hazard Classifications

Eye Irrit. 2 - Skin Irrit. 2 - STOT SE 3

Target Organs

Respiratory system

Storage Class Code

11 - Combustible Solids

WGK

WGK 3

Personal Protective Equipment

dust mask type N95 (US), Eyeshields, Gloves

Certificates of Analysis (COA)

Search for Certificates of Analysis (COA) by entering the products Lot/Batch Number. Lot and Batch Numbers can be found on a product’s label following the words ‘Lot’ or ‘Batch’.

Already Own This Product?

Documents related to the products that you have purchased in the past have been gathered in the Document Library for your convenience.

Visit the Document Library

Difficulty Finding Your Product Or Lot/Batch Number?

Product numbers are combined with Pack Sizes/Quantity when displayed on the website (example: T1503-25G). Please make sure you enter ONLY the product number in the Product Number field (example: T1503).

Example:

T1503
Product Number
-
25G
Pack Size/Quantity

Additional examples:

705578-5MG-PW

PL860-CGA/SHF-1EA

MMYOMAG-74K-13

1000309185

enter as 1.000309185)

Having trouble? Feel free to contact Technical Service for assistance.

Lot and Batch Numbers can be found on a product's label following the words 'Lot' or 'Batch'.

Aldrich Products

  • For a lot number such as TO09019TO, enter it as 09019TO (without the first two letters 'TO').

  • For a lot number with a filling-code such as 05427ES-021, enter it as 05427ES (without the filling-code '-021').

  • For a lot number with a filling-code such as STBB0728K9, enter it as STBB0728 without the filling-code 'K9'.

Not Finding What You Are Looking For?

In some cases, a COA may not be available online. If your search was unable to find the COA you can request one.

Request COA

Arkady Krasovskiy et al.
Journal of the American Chemical Society, 131(43), 15592-15593 (2009-10-16)
Mix in water, stir. That is all that is required in this new approach to sp(3)-sp(2) cross-couplings between an alkyl iodide and an aryl bromide, both potentially bearing functionality. They react under catalysis by Pd(0) in the presence of zinc
Palladium-catalyzed annulation of alkynes with ortho-halide-containing benzyl alcohols in aqueous medium
Feng J, et al.
The Journal of Organic Chemistry, 79(21), 10561-10567 (2014)
Anil S Guram et al.
Organic letters, 8(9), 1787-1789 (2006-04-21)
[reaction: see text] New air-stable PdCl(2){P(t)Bu(2)(p-R-Ph)}(2) (R = H, NMe(2), CF(3),) complexes represent simple, general, and efficient catalysts for the Suzuki-Miyaura cross-coupling reactions of aryl halides including five-membered heteroaryl halides and heteroatom-substituted six-membered heteroaryl chlorides with a diverse range of
