ZEQ7008T0C

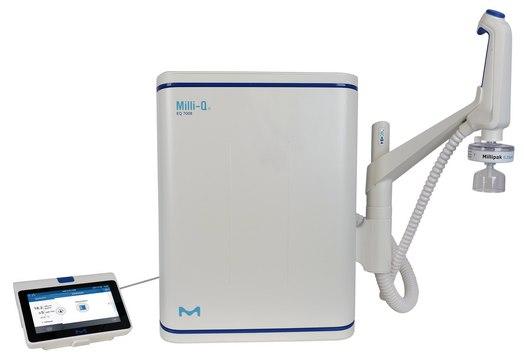

Milli-Q® EQ 7008 Ultrapure and Pure Water Purification System
Produces ultrapure (Type 1) and pure (RO, Type 3) water from tap water with a production flow rate up to 8 L/hour
AC/DC input
100 V / 230 V, 50-60 Hz
packaging
pkg of 1 unit
parameter
<2 L/min distribution flow rate (from POD)
<2 L/min product water instant delivery rate
160 L/day max. usage
27.4 kg operating weight (60.4 lb) (system and system mounted POD)
8 L/hr make-up flow rate
resistivity
18.2 MΩ-cm, @25oC (Product Water)
system H
49.8 cm (19.6 in.)
76.7 cm (30.2 in.) , with POD on top position
system depth
38 cm (15 in.)
55.6 cm (21.9 in.) , with POD attached
system width
37.5 cm (14.8 in.)
44.4 cm (17.5 in.) , with POD attached
total organic carbon (TOC) residue
≤5 ppb (Product Water)
input
feed water nature potable tap water
feed water nature potable tap water
output
product water quality: type 3 water (RO water)
product water quality: type 1 water (18.2 MΩ·cm)
conductivity
0.055 μS/cm at 25 °C (Ultrapure Water)
General description
A range of intelligent design features and technological innovations make the system easy to use and reduce its environmental footprint compared to the previous generation Milli-Q® Direct system.
The system features three distinct components that can be remotely installed from the purification unit:
- A large, 7-inch (~18 cm) touchscreen interface that allows intuitive system control, rapid data access, and at-a-glance quality monitoring can be placed up to 3 m from the system.
- The ergonomic Q-POD® dispenser provides 3 flow rates, ‘Check & Dispense’ lights, and final polishing adapted to application needs. It can be mounted on the system or wall-mounted up to 3 m from the system.
- An intelligent pure water storage tank that provides maximum protection from external sources of contamination.
Application
It is also recommended for use in life science areas such as cell biology, molecular biology, biochemistry and innovative detection methods.
Reverse osmosis (RO, Type 3) water produced by this system can be used for equipment feed, vivarium, aquatic habitats and plants.
Features and Benefits
- Delivers ultrapure water directly from a tap water source.
- Intelligent pure water storage solution provides multi-targeted protection to safeguard water quality.
- IPAK Meta® and IPAK Quanta® polishing cartridges remove ions from pure water down to trace level.
- The Q-POD® dispenser offers agile delivery of water at 3 manually adjustable flow rates.
- ‘Check & Dispense’ lights on the Q-POD® arm ensure system readiness and an optimal dispense.
- One-touch volumetric dispensing, from 100 mL to 25 L, in 100 mL increments.
- The dispenser and HMI touchscreen can be installed up to 3 m distance from the system.
- Delivers consistent low total organic carbon (TOC = 5 ppb) ultrapure water.
- A user-friendly, intuitive HMI touchscreen simplifies system use and data access.
- At-a-glance quality monitoring gives essential water quality information (resistivity, temperature, TOC indication, and water circulation status) on the touchscreen interface.
- Inline proprietary TOC indicator measures at the point of use. The measure appears on the display 90 seconds after each dispense.
- e-Sure tags present on all system consumables including Application POD-Paks give full data traceability.
- Flexible, space-saving installation options: on or under the bench, or wall mount.
- A convenient hands-free dispensing foot pedal option reduces the risk of contamination.
- Lab Close mode minimizes water and energy consumption when the system is not used for extended periods.
- Easy and carefree maintenance: Automatic alerts notify the need for cartridge replacement.
- Manufactured in an ISO 9001 and ISO 14001 certified production site.
- Select from a full range of services, including time-saving MyMilli-Q™ Digital Services.
Components
- A specific country box with the user manual in the local language and a power cord adapted to the local electrical network needs to be ordered in addition to this catalog number.
- The indicated price currently corresponds to the above catalog number only; it is subject to change at any time without notice.
- This catalog number contains the water purification unit and the HMI touchscreen.
- This catalog number does not include the ultrapure water Q-POD® dispenser, consumables, accessories, and other services that may be required for the installation and the correct operation of the water purification unit over time.
- Because our customers each have specific purified water needs, we recommend that you have your purchase validated by one of our specialists. We remain at your disposal to advise you, do not hesitate to Contact Us!
