产品名称
导电油墨, for inkjet printing, with ethyl cellulose in cyclohexanone and terpineol, inkjet printable
description
Electrodes
Quality Level
form
liquid
greener alternative product characteristics
Design for Energy Efficiency
Learn more about the Principles of Green Chemistry.
sustainability
Greener Alternative Product
concentration
2.4 wt. % (solid (graphene and ethyl cellulose) in cyclohexanone/terpineol)
resistivity
0.003-0.008 Ω-cm (thermally annealed 250°C for 30 minutes, film thickness >100 nm)
particle size
≤3 μm
surface tension
30 dyn/cm
viscosity
8-15 mPa.s(30 °C)
bp
213-218 °C (Terpineol)
density
0.9375 g/mL at 25 °C
greener alternative category

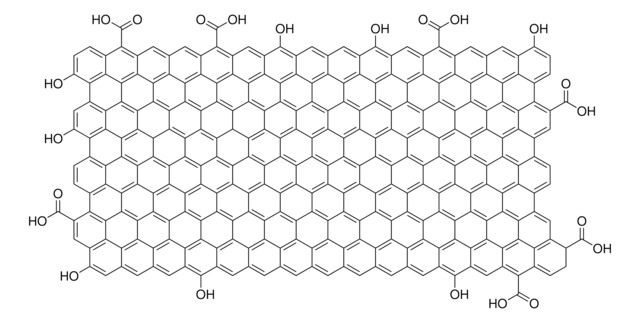

SMILES string
OC(C1=C2C(C3=C(C4=C(C5=C(C6=C(C7=C(C8=C(C9=C(C%10=C(C%11=C(C%12=C(C%13=C(C%14=C(C%15=CC=C%16O)C%16=C%17)C%17=C%18)C%18=C%19C(O)=O)C%19=C%20)C%20=C%21O)C%21=C%22)C%22=C%23)C%23=C%24O)C%24=C%25)C%25=C%26C(O)=O)C%26=C%27)C%27=C2)=C%28C%29=C(C%30=C%31C%28=C%3
General description
Application
固化条件：250-350°C, 20-30min
本油墨在聚酰亚胺和二氧化硅基材上测试过。
Legal Information
Still not finding the right product?
Explore all of our products under 导电油墨
signalword
Danger
Hazard Classifications
Acute Tox. 4 Dermal - Acute Tox. 4 Inhalation - Acute Tox. 4 Oral - Eye Dam. 1 - Skin Irrit. 2 - STOT SE 3
target_organs
Respiratory system
存储类别
10 - Combustible liquids
wgk
WGK 2
flash_point_f
143.6 °F
flash_point_c
62 °C
法规信息
此项目有
商品
自从十多年前被发现以来，碳-石墨烯的二维（2D）同素异形体一直是密集的多学科研究工作的主题。
新兴的印刷电子领域需要一套功能材料以供使用，包括可弯曲的和大面积的显示器、无线射频识别标签、便携式能量收集和存储、生物医学和环境传感器阵列5,6 和逻辑电路。
Since its discovery little more than a decade ago,1 the two-dimensional (2D) allotrope of carbon—graphene—has been the subject of intense multidisciplinary research efforts.
全球贸易项目编号
| 货号 | GTIN |
|---|---|
| 793663-5ML | 04061832951850 |
