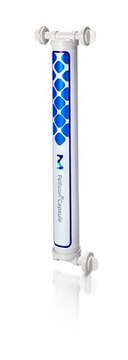

产品名称
Pellicon®膜包，带Ultracel®膜, Feed: 3/4" Sanitary Flange Retentate: 3/4" Sanitary Flange Permeate: 3/4" Sanitary Flange
Quality Level
material
EPDM rubber seal, PPO/PS blend (core), PPO/PS blend housing, TPE seal, composite regenerated cellulose (CRC) membrane, epoxy adhesive, polyester screen, polypropylene screen, polyurethane adhesive
sterility
sterile; γ-irradiated
product line
Pellicon®
storage condition
room temperature (15-30°C)
parameter
4-8 L/min-m2 flow rate (feed), 50 psi max. transmembrane pressure (3.5 bar) at 4-30 °C (forward), 80 psi max. inlet pressure (5.5 bar) at 4-30 °C
technique(s)
ultrafiltration: suitable
L
35.3 cm (13.9 in.)
diam.
3.8 cm (1.5 in.)
filtration area
0.1 m2
screen size
, Type C screen (coarse screen)
volume
26 mL , in feed channel, 62 mL , in permeate channel
impurities
≤5 ppm Meets TOC (in retentate effluent, after a WFI flush of 20 L/m2)
matrix
Ultracel®
pore size
30 kDa
pH
2-13
fitting
3/4 in. inlet/outlet sanitary flange (feed), 3/4 in. inlet/outlet sanitary flange (permeate), 3/4 in. inlet/outlet sanitary flange (retentate)
General description
Application
Features and Benefits
伽马射线灭菌，不含防腐剂- 可在数分钟内完成处理准备
真正的一次性独立膜包- 快速、安全和灵活的批次周转
经过实践检验的Ultracel® 膜和C筛网 - 高回收率、优良的传质效果、良好的耐溶剂性
Pellicon® TFF 经过实践检验的性能 -Pellicon® TFF家族真正的线性可扩展性
Packaging
Other Notes
全面的文档为验证、风险评估和过程优化需求提供支持 。
针对产品的测试、质量和法规信息的整合简化合规要求 。
可方便地全天候取最新产品信息。 .
