PCC300C10G

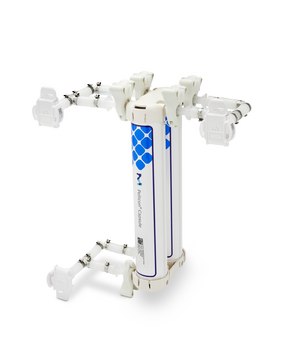

Pellicon® Capsule with Ultracel® Membrane

C Screen, 1 m² manifold AseptiQuik® G connectors

别名:

Pellicon® Capsule with Ultracel® Membrane

登录 查看组织和合同定价。

选择尺寸

变更视图

关于此项目

UNSPSC Code:
23151806
技术服务
需要帮助？我们经验丰富的科学家团队随时乐意为您服务。
让我们为您提供帮助

产品名称

Pellicon®胶囊，带Ultracel®膜, Feed: AseptiQuik® G Connector Retentate: AseptiQuik® G Connector Permeate: AseptiQuik® G Connector

Quality Level

400

material

EPDM rubber seal, PPO/PS blend (core
core), PPO/PS blend housing, TPE seal, composite regenerated cellulose (CRC) membrane, epoxy adhesive, polyester screen, polypropylene seal, polyurethane adhesive

sterility

sterile; γ-irradiated

product line

Pellicon®

feature

holdup volume 276 mL (in permeate channel), holdup volume 277 mL (in feed channel)

packaging

package of 1

parameter

max. inlet pressure at 75 psi (5.1 bar) and 4-30 °C, max. transmembrane pressure at 45 psi (3.1 bar) and 4-30 °C, 4-6 L/min-m2 flow rate

technique(s)

ultrafiltration: suitable

filtration area

1 m2

screen size

, Type C screen (coarse screen)

size

19.56 cm (7.7 in.) , Length, 40.46 cm (15.93 in.) , Height

width

34.37 cm (13.53 in.) , 343.7 mm

impurities

≤5 ppm Meets TOC (in retentate effluent, after a WFI flush of 20 L/m²)

matrix

Ultracel®

pore size

300 kDa

pH range

2-13

storage temp.

15-25°C

General description

The Pellicon® Capsule is the first of its kind -- a true single-use TFF device that comes ready to process in minutes. Self-contained, it employs an easy-to-use, holderless format and is supplied sterilized by irradiation.
Feed: AseptiQuik® G Connector
Permeate: AseptiQuik® G Connector
Retentate: AseptiQuik® G Connector
Permeate: AseptiQuik® G Connector

Application

Viral Gene Therapies, Vaccines, Concentration, Diafiltration, Buffer exchange, Protein purification, mRNA

Features and Benefits

  • Plug ′n play, holderless design - easy to install, safe to remove
  • Gamma Sterilized and preseravtive-free - ready to process in minutes
  • True single-use, self-contained capusle - fast, safe, and flexible batch turnaround
  • Proven Ultracel® membrane and C screen - high recovery, superior mass transfer, solvent resistance
  • Pellicon® TFF proven performance - true linear scalability within Pellicon® TFF families

Packaging

The manifold assembly is inserted into a polyethylene foam frame and then double bagged and vacuum sealed. The double-bagged assembly is placed within a second foam frame and individually boxed (qty 1 per box).

Other Notes

The Emprove® Program complements the product portfolio through

  • Comprehensive documentation to support qualification, risk assessment and process optimization needs.
  • Consolidation of product specific testing, quality and regulatory information to simplify compliance requirements.
  • Convenient 24/7 access to up-to-date product information.

Legal Information

AseptiQuik is a registered trademark of Colder Products Company
Emprove is a registered trademark of Merck KGaA, Darmstadt, Germany
Pellicon is a registered trademark of Merck KGaA, Darmstadt, Germany
ULTRACEL is a registered trademark of Merck KGaA, Darmstadt, Germany
